4X4 Wholesalers Africa

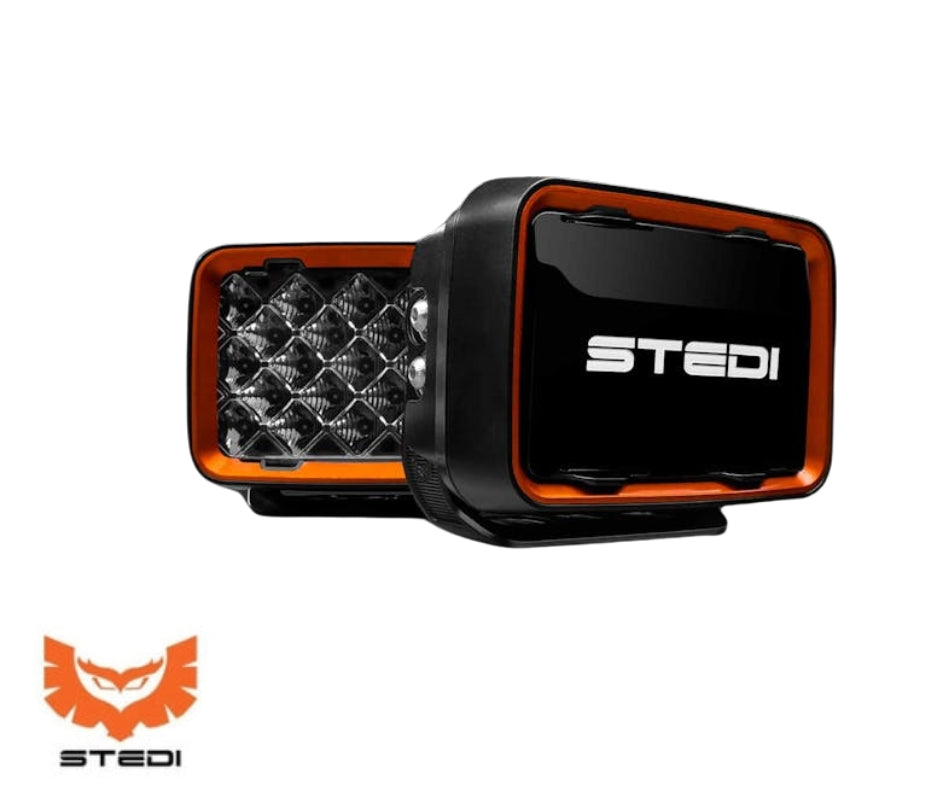

STEDI | Quad EVO LED Driving Lights Set

STEDI | Quad EVO LED Driving Lights Set

R 18,999.00 ZAR
R 18,999.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

STEDI | Quad EVO LED Driving Lights Set



THE QUAD LEGACY.

The EVO family continues to grow, but this time with a little twist. We have been tirelessly working on another exciting addition to join the EVO bloodline and taken one of our legacy driving lights QUAD PRO™ and incorporated significant innovative enhancements, to develop the next generation of rectangular shaped driving lights. Infused with the quintessential EVO DNA, resulting in a more organically shaped driving light that delivers superior performance, QUAD EVO not only integrates cutting-edge technology but also exemplifies superior design.

Tech Specs

Quad EVO Center Module
LED 23 x CREE XP20
RAW LUMENS 22,080 (pair)
TESTED LUMENS 6,159lm (single) | 12,049lm (pair)
AMP DRAW 6A (pair) @12V
POWER DRAW 144W (pair)
CANDELA 856,695 (pair)
LUX  928 m (pair)
BEAM PATTERN

Combo Beam (Flood, Spot & Widespread)
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5000K
LUMEN MAINTENANCE 30,000 LM-80
VOLTAGE COMPATIBILITY 10v & 30v
WEIGHT 2.11kg (each)
OPERATING TEMPERATURE -40°C to 60°C
Quad EVO Side Module
LED 18 x CREE XP20 + 5 x Widespread (each)
RAW LUMENS 22,080 (pair)
TESTED LUMENS 5,885lm (each) 11,726lm    (pair)
AMP DRAW 6A (pair) @12V
POWER DRAW 144W (pair)
CANDELA 856,695 (pair)
LUX 578 m (pair)
BEAM PATTERN

Combo Beam 210° Widespread
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5000K
LUMEN MAINTENANCE 30,000 LM-80
VOLTAGE COMPATIBILITY 10v - 30v
WEIGHT 2.35kg (each)
OPERATING TEMPERATURE -40°C to 60°C

What's Included

Quad EVO Center Module

  • 2 x Quad EVO LED Driving Lights (Center)
  • 2 x Protective STEDI™ Black Out Cover
  • 2 x Grey Color Fascia
  • 2 x Orange Color Fascia
  • 2 x EVO Fascia Key & Key Chain
  • 2 x Bracket & Stainless Steel Fastener Kit
  • 1 x QR Code Fitting Instructions





Warranty: 5 Years (in order to be covered for this warranty you would need to register your purchase at this link 4X4 Wholesalers Africa)

Part Number: ST-01-QDE-002
