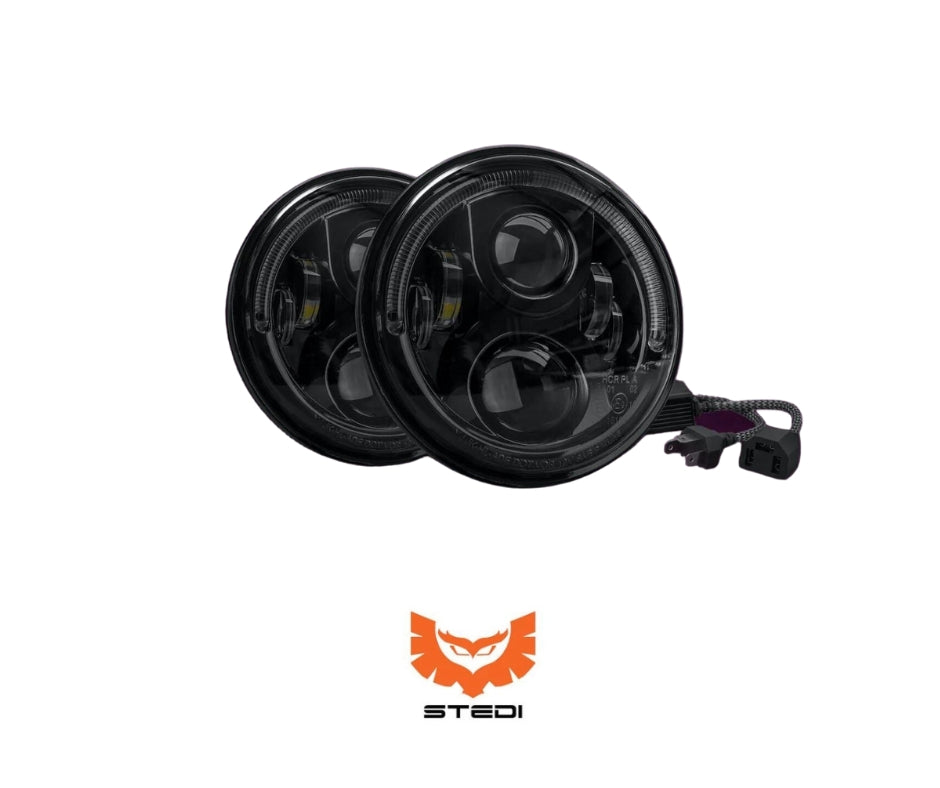

STEDI 7 INCH CARBON BLACK LED HEADLIGHT PAIR (FOR LANDCRUISER)
TECH SPECS
| LED (Per Headlight) | High Beam: 2x 10w XML-2 LED Low Beam: 2x 15w LED Park Light: 20x 1.5w Osram |
| RAW LUMENS (Per Headlight) | High Beam: 1800Lm Low Beam: 1250Lm Park Light: 150Lm |
| AMP DRAW (Per Headlight) | High Beam: 2.4a @ 13.6v Low Beam: 1.6a @ 13.6v Park Light: 0.2a @ 13.6v |
| LIFESPAN | 50,000 Hours |
| INGRESS PROTECTION | IP67 |
| OPERATING TEMPERATURE | -30°C~+60°C |
| LENS MATERIAL | LEXAN Polycarbonate |
| COLOUR TEMP | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| PEAK BEAM DISTANCE @ 1 LUX (Per Headlight) | High Beam: 235m Low Beam: 141m Park Light: 8m |
| WEIGHT (each) | 1.140kg each |
| DROP-IN REPLACEMENT FOR |
#6014, 6015, 6016, H6024 and Par 56 headlamp designs |
|
ADR COMPLIANCE |
ADR 46/00 ADR 49/00 |
H4 Cancellation Module:
| CONNECTOR TYPE | H4 |
| COMPATIBILITY | 12v ONLY |
WHAT'S INCLUDED
- 2 x 7 inch STEDI CARBON CHARCOAL LED Headlight
- 2 x H4 CANBUS Cancellation Modules
Part Number: LEDMOTO-CARBON-7-PAIR-LC
