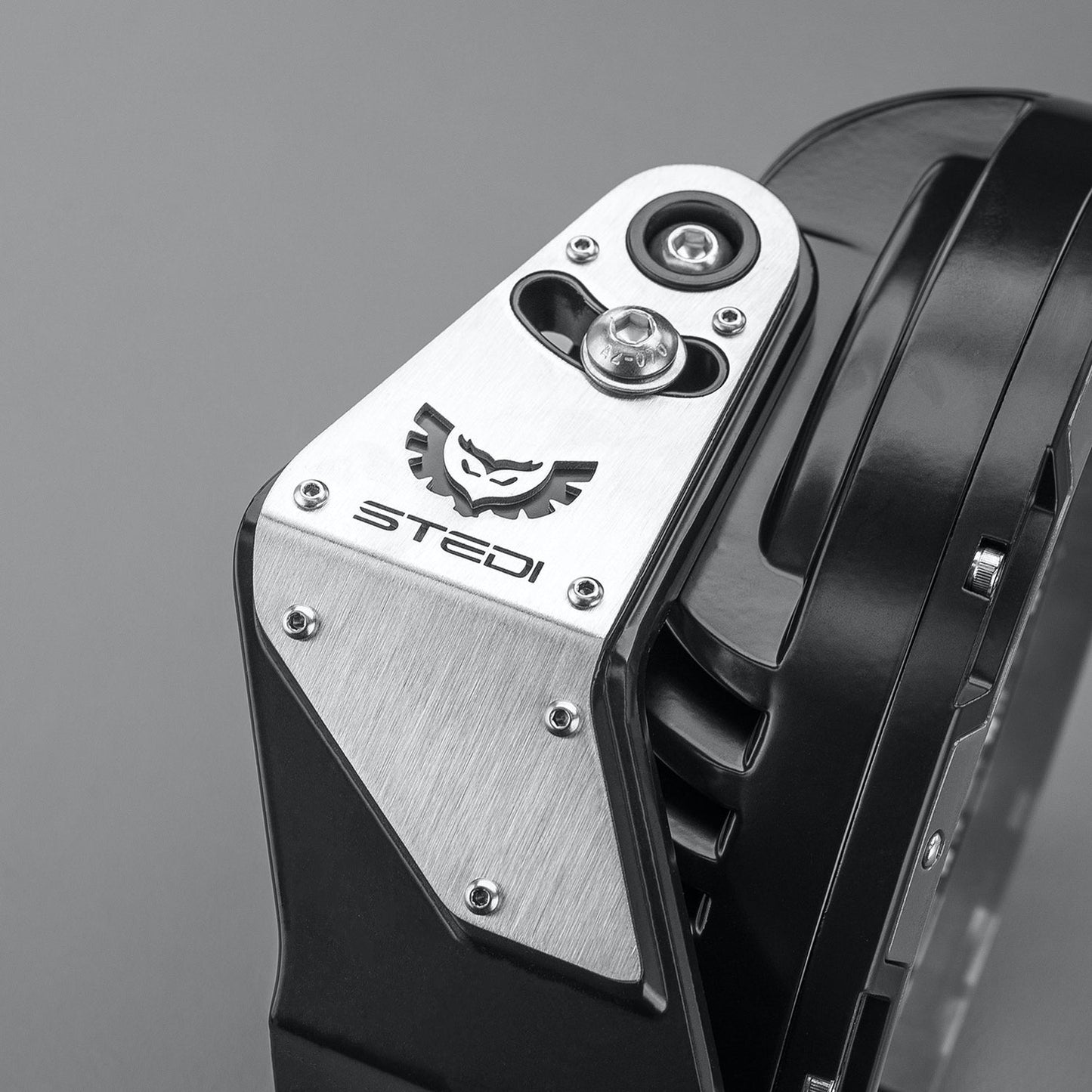

STEDI | Type X Pro LED Spotlight Set
STEDI | Type X Pro LED Spotlight Set
Regular price
R 16,999.00 ZAR
Regular price
R 17,999.00 ZAR
Sale price
R 16,999.00 ZAR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
STEDI TYPE X PRO LED SPOTLIGHT SET
TECH SPECS
| LED | 37 x Olson High-Flux LED |
| RAW LUMENS | 26,270 (Pair) |
| TESTED LUMEN | 15,870 (Pair) |
| AMP DRAW | 10.4A @ 13.2v (each) |
| POWER DRAW | 137W |
| MANDELA | 1,334,025cd |
| BEAM PATTERN |
6 x 50° Spread 31 x 5.8° Pencil Beam |
| INGRESS PROTECTION | IP | Submersible up to 3m |
| Color TEMP (KT) | 5700K |
| VOLTAGE COMPATIBILITY | LA-12 & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 2.860kg (each) |
| OPERATING TEMPERATURE | -40°C to 60°C |
| PHOTOMETRIC DATA | |
| 10 m | 13,340 Lx |
| 50 m | 533 Lx |
| 200 m | 33 Lx |
| 300 m | 14 Lx |
| 400 m | 8 Lx |
| 1,000 m | 1.3 Lx |
| 1,155 m | 1 Lx |
WHAT'S INCLUDED
- 2 x STEDI Type-X PRO LED Driving Lights
- 2 x Protective STEDI Black Out Covers
- 2 x Gray Color Rings
- 2 x Orange Colored Rings
- 1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB adapter plugs to high beam. 60A Relay, Fuse, Switch
- Complete Stainless Steel fastener kit.
- Wiring & Fitting Instructions.
Warranty: 5 Years (in order to be covered by this warranty you would need to register your purchase at this link 4X4 Wholesalers Africa)
Part Number: LEDTYPE-X-PRO
