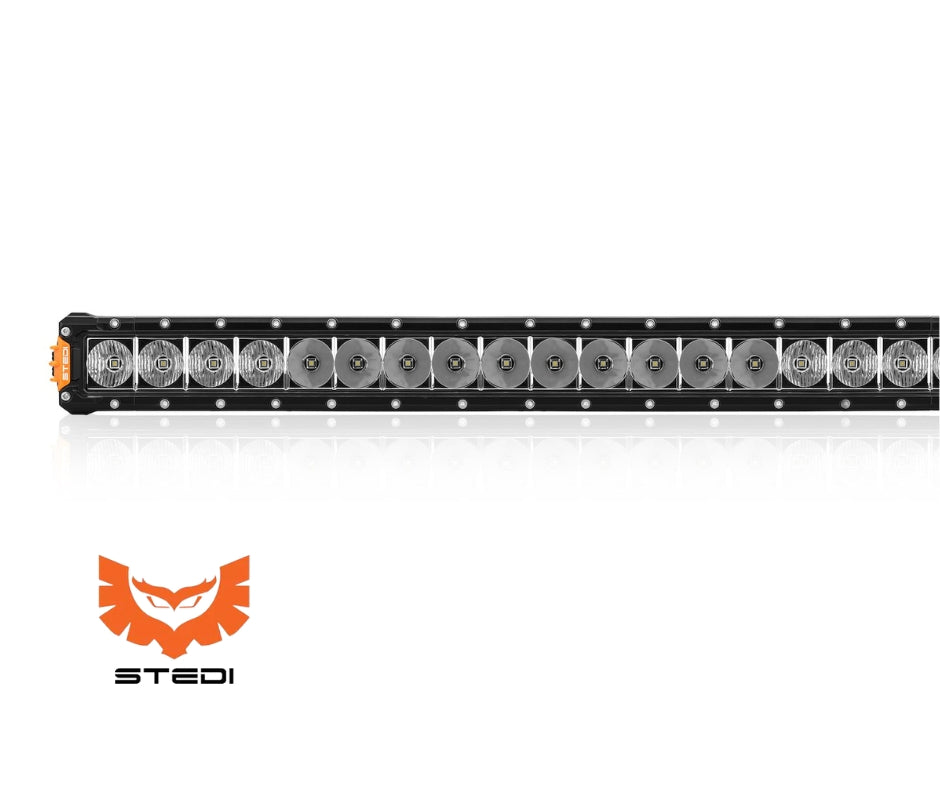

STEDI ST3301 PRO 27.5 INCH 18 LED LIGHT BAR
TECH SPECS
LUMEN | 15,300Lm (RAW) 8,250Lm (Effective) |
PEAK INTENSITY (CANDELA) | 360,000cd |
OPERATING VOLTAGE | 10-45V DC |
WATERPROOF RATE | IP 68 |
LED | 18 x OSRAM™ |
COLOUR TEMPERATURE | 5700K |
MATERIAL | Die-Cast Aluminium |
LENS | GE Lexan™ |
MOUNTING BRACKET | Aluminium |
BOLTS AND FITTINGS | 3 Series Stainless Steel |
FLOOD BEAM ANGLE | 45° |
SPOT BEAM ANGLE | 11° |
LUMEN MAINTENANCE | 50,000 LM-80 |
WEIGHT | 2.800kg |
CURRENT DRAW | 11.8A @ 13.6v |
OPERATING TEMP | -40°C - 60°C |
WHAT'S INCLUDED
- ST3301 Pro 27.5 INCH 18 LED LIGHT BAR
- Stainless Bolt and Nut Set

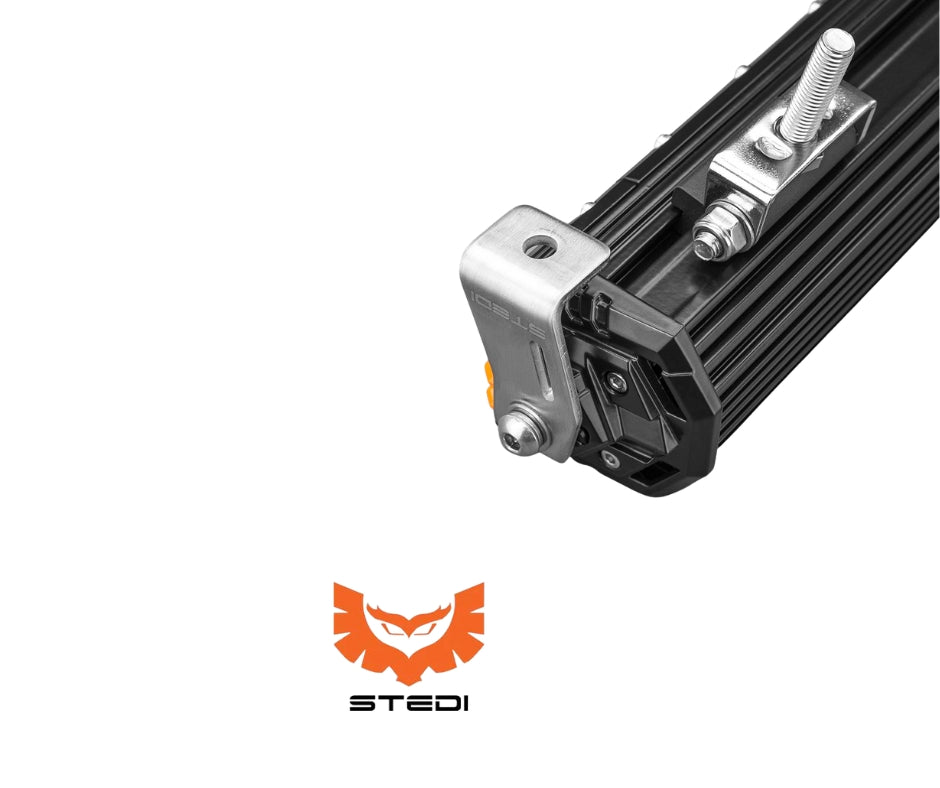

- Sliding Lower Mounting Brackets + Side Brackets

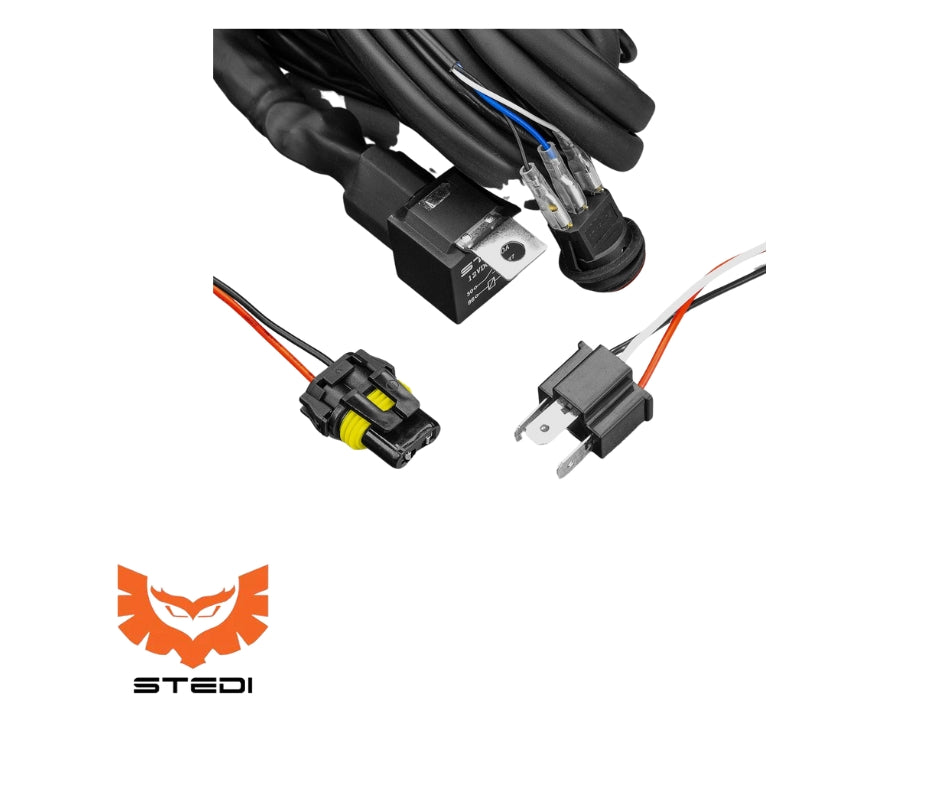

- Quick Fit High Beam Wiring Harness 12v Relay, Wiring Kit and On/Off Switch

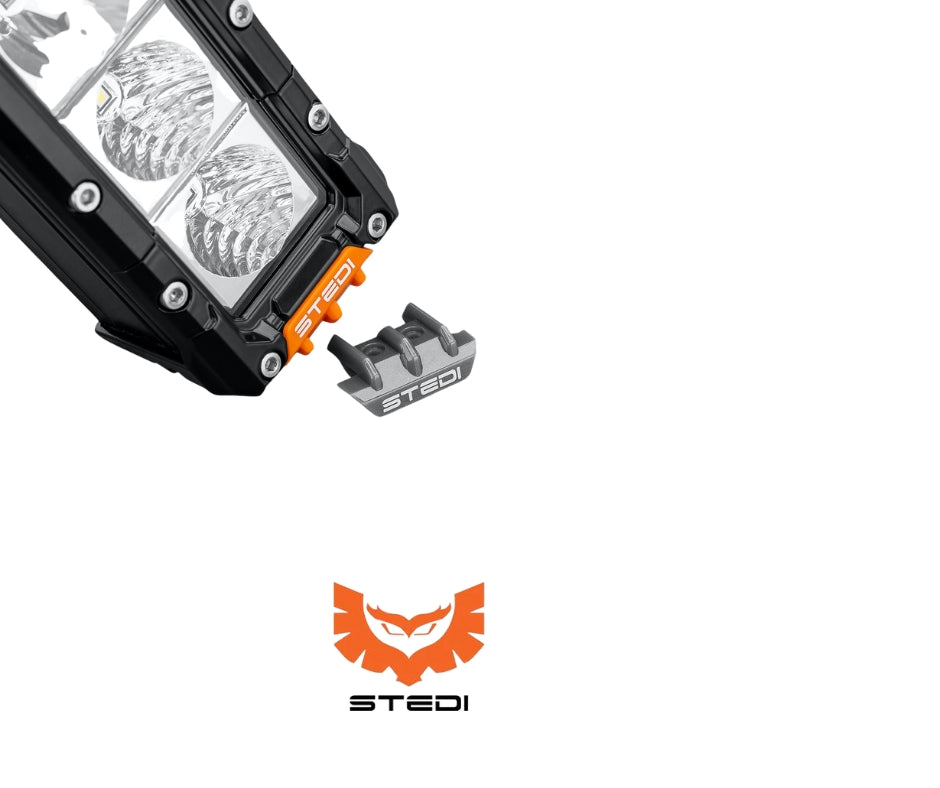

- 2 x Orange Side Caps
- 2 x Grey Side Caps
- HB3 and H4 Piggy Back Adaptors
Warranty: 5 Years ( in order to be covered for this warranty you would need to register your purchase at this link 4X4 Wholesalers Africa)
Part Number: LED3301-PRO-18L
